Ingersoll Spot Drill Kit + 10 Carbide Inserts, FAK-0809084K01, 3208168

$399.00
Only 1 left
-
+
Description

Ingersoll Cutting Tools

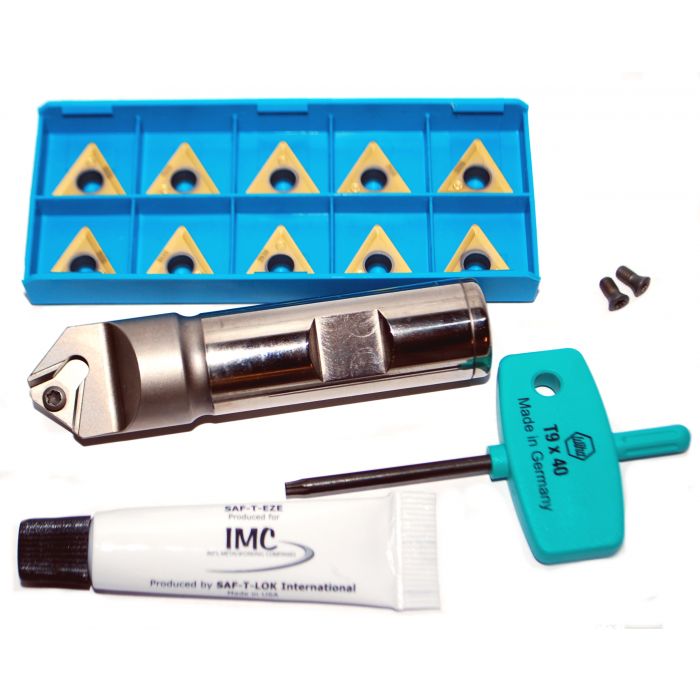

Indexable Spotting drill Kit with 10 Inserts and 10 Insert Screws, FAK-0809084K01


Tooling Package Includes:
- One Indexable Spotting Drill
- Ten Inserts
- Ten Insert Screws
- One Torx srew driver
- Two additional insert screws


Drill
Drill Number: FAK-0809084R01
INcluded Angle: 90-Degree
Diameter of Spot: 0.842(inch), 21,39mm
Max. Depth of Cut: .39
Overall Diameter: .810
Extension from Holder: 1.50
Overall Length: 3.50
Shank Size / Style: .750 Weldon
Number of Required Inserts: 1


Inserts
Ingersoll TFLT15T308N
Grade IN2530
MPN: 5100414
Thickness: .156
Inscribed Circle: .537
Application: Multi-purpose


Insert Screws
SM30-065-00
Package of 10
Pluse 2 Screws included with Drill
Total: 12

MPN: 3208168
PKG QTY: 1 KIT

Technical Specifications
MPN:
3208168
BRAND:
Ingersoll Cutting Tools
SKU:
IN-3208168
SUPPLIER:
